To choice and buy a door, you need to measure the space available. The main technical measures are::
  • counter frame door opening, both width L3 and height H3;
  • wall thickness including ceramic tiles;
  • opening door direction.
Leonardo design

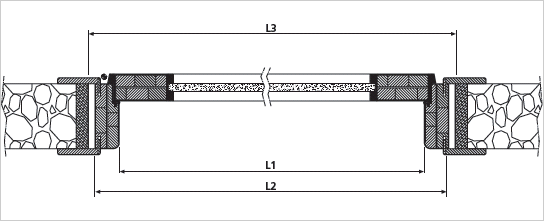

L x H (mm) L1 x H1 (mm) L2 x H2 (mm) L3 x H3 (mm)
Door opening Door opening Frame external Cunter frame door opening
800 x 2100 800 x 2100 880 x 2140 900 x 2150
700 x 2100 700 x 2100 780 x 2140 800 x 2150
600 x 2100 600 x 2100 680 x 2140 700 x 2150

Covering of wire on each side over the frame external:

Wire cover COMPACT IN LA CC
mm. 72 62 60 52

opening direction::

Right opening

Leonardo design

Left opening

Leonardo design
